The Toyota RAV4 continues to dominate the compact SUV segment with its versatile drivetrain options across various trim levels. This year’s lineup maintains the Toyota reputation for reliability while offering consumers a choice between conventional gasoline, hybrid, and plug-in hybrid powertrains. Each system provides distinct performance characteristics tailored to different driving needs and preferences.

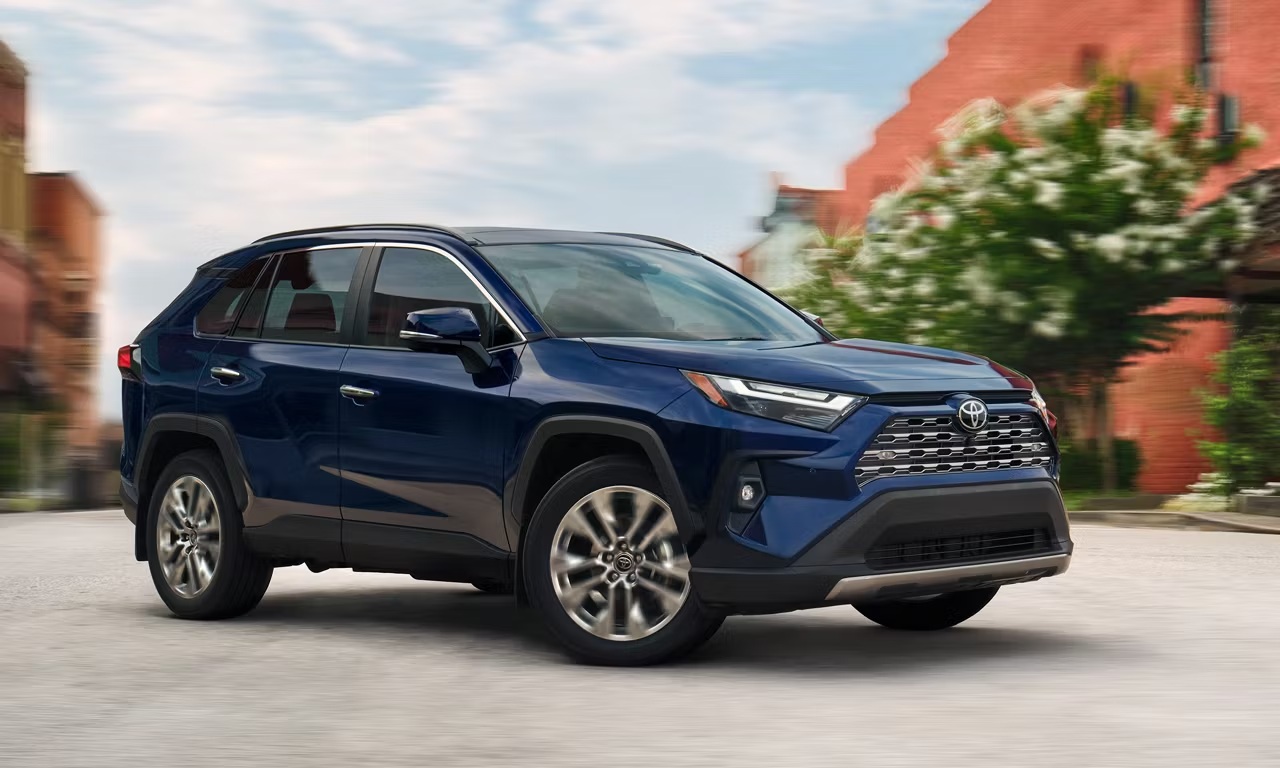

2025 Blue Toyota R4V4
Facts About Toyota RAV4 Drivetrain Systems
- The RAV4 Prime plug-in hybrid can accelerate from 0-100 km/h in just 6 seconds, making it quicker than many sports sedans despite being a compact SUV.
- All new RAV4 Hybrid models come standard with electronic on-demand all-wheel drive, with no option for front-wheel drive configuration.
- The Trail and TRD Off-Road trims feature torque vectoring rear differentials that can direct power to individual wheels for improved off-road traction.
- Toyota has phased out the distinctive blue hybrid badge on the latest models, replacing it with a more subtle design that integrates with the overall vehicle aesthetic.
- The RAV4 AWD system can disconnect the rear axle during steady highway cruising to improve fuel efficiency without sacrificing all-weather capability.
Conventional Gasoline Drivetrain
Engine and Transmission Specifications
The standard Toyota RAV4 features a naturally aspirated 2.5-litre four-cylinder engine across all conventional gasoline trims. This powerplant produces a respectable 203 horsepower at 6,600 rpm and 184 Nm of torque at 5,000 rpm. All gasoline-powered RAV4 models are paired exclusively with an eight-speed automatic transmission that offers smooth, responsive shifting.
Unlike previous generations, where front-wheel drive was standard on base models, the latest RAV4 comes equipped with all-wheel drive (AWD) across all trims in the lineup. This dynamic torque vectoring system can send up to 50% of available power to the rear axle when needed, improving traction on slippery surfaces.
The system primarily operates in front-wheel drive mode during normal driving conditions to maximize fuel efficiency. When sensors detect wheel slip or during acceleration, power is automatically redistributed to maintain optimal traction. This intelligent AWD system provides drivers with confidence in various weather conditions while maintaining reasonable fuel economy.
Trim-Specific Drivetrain Features
The base LE AWD trim offers a straightforward AWD system that handles most everyday driving situations with ease. Moving up to the XLE AWD provides the same fundamental drivetrain setup but adds additional driver-selectable modes that optimize the system for different conditions.
The Trail AWD trim stands out with its more advanced multi-terrain select system and enhanced torque-vectoring rear differential. This specialized differential can determine if a rear wheel has lost traction and ensure the opposite wheel receives adequate power to maintain forward momentum. The Trail model also benefits from increased ground clearance of 219 mm compared to 206 mm on standard trims, making it more capable in light off-road situations.
The Limited AWD maintains the same fundamental drivetrain as the XLE but adds enhanced electronic control systems that provide a more refined driving experience. All gasoline models feature a 55-litre fuel tank and require unleaded regular fuel with an 87 octane rating.
Hybrid Drivetrain System
Hybrid Powertrain Architecture
The RAV4 Hybrid lineup continues to employ the proven Toyota hybrid system, pairing the 2.5-litre four-cylinder engine with two electric motors and a continuously variable transmission (CVT). This sophisticated system generates a combined 219 horsepower—16 more than the conventional gasoline variant.
One key difference in the hybrid’s drivetrain is its electronic on-demand all-wheel drive system. Unlike the mechanical AWD in the gasoline models, the hybrid employs a dedicated electric motor to power the rear wheels when needed. This design eliminates the need for a mechanical connection between the front and rear axles, reducing weight and improving efficiency.
The hybrid system utilizes a sealed nickel-metal hydride battery pack positioned beneath the rear seats, which helps maintain the same cargo capacity as the conventional models while providing electrical storage for the hybrid system. The intelligent power control unit constantly monitors driving conditions to determine the optimal power split between gasoline engine and electric motors.
Hybrid Trim Variations
The RAV4 Hybrid is available in multiple trim levels: LE, XLE, Woodland Edition, XLE Premium, SE, XSE, and Limited. Each trim shares the same fundamental hybrid drivetrain but offers different drive modes and control settings.
The base Hybrid LE provides an economical entry point to hybrid technology while maintaining standard AWD capability. The Hybrid XLE adds additional drive modes that allow more customization of the hybrid system’s operation.
The Woodland Edition stands out with its rugged styling and off-road-focused drivetrain calibration. This specialized trim features revised suspension tuning and trail-oriented drive modes that optimize the hybrid system for unpaved surfaces. It’s rated slightly lower for fuel efficiency due to these modifications, but offers improved capability in challenging conditions.
The Hybrid XSE represents the sportier side of the lineup with a performance-oriented suspension setup and drivetrain calibration that provides more responsive acceleration. The top-tier Hybrid Limited focuses on refined operation with the most sophisticated electronic control systems in the lineup.
All hybrid models feature a 14.5-litre fuel tank—significantly smaller than the conventional models’ 55-litre tank—yet achieve greater driving range due to their superior fuel efficiency.
Plug-In Hybrid Drivetrain
Prime Powertrain Technology
The RAV4 Prime represents the most advanced Toyota drivetrain offering in the compact SUV segment. This plug-in hybrid electric vehicle (PHEV) uses a similar architecture to the standard hybrid but adds a much larger lithium-ion battery pack and more powerful electric motors.
The Prime’s powertrain combines the 2.5-litre four-cylinder engine with electric motors for a substantial combined output of 302 horsepower—nearly 100 more than the conventional gasoline model. This impressive power enables the RAV4 Prime to accelerate from 0-100 km/h in approximately 6 seconds, making it the quickest vehicle in the Toyota SUV lineup.
Like the standard hybrid, the Prime uses an electronic on-demand AWD system with a dedicated rear electric motor. However, the Prime’s rear motor produces significantly more power, providing enhanced traction and performance in all driving conditions.
The 18.1 kWh lithium-ion battery pack enables the Prime to travel up to 68 kilometers on electric power alone before the gasoline engine needs to activate. This electric-only range covers typical daily commuting distances for many drivers, potentially allowing weeks between fuel station visits for those with regular charging access.
Prime Trim Options
The RAV4 Prime comes in two well-equipped trim levels: SE AWD and XSE AWD. Both feature the same fundamental drivetrain system but differ in suspension tuning and electronic features.
The Prime SE AWD provides an impressive array of standard features, including multiple drive modes that allow drivers to prioritize electric operation, hybrid efficiency, or maximum performance. The system can also maintain the battery charge for later use in areas where electric operation might be preferred.
The top-tier Prime XSE AWD adds additional electronic control refinements and drive mode selections. Both Prime models include standard fast-charging capability, allowing the battery to reach 80% charge in approximately 2.5 hours using a Level 2 (240V) charging station.
Drivetrain Performance Comparison
When comparing the three available drivetrain options, each offers distinct advantages depending on driving preferences and requirements.
The conventional gasoline models provide straightforward operation and the lowest acquisition cost. With 203 horsepower, they deliver adequate acceleration with 0-100 km/h times of approximately 8.5 seconds. Fuel consumption rates average 8.8 L/100 km in city driving and 7.1 L/100 km on highways for the LE AWD trim, with slightly higher consumption on other trims due to additional equipment weight.
The hybrid models strike an impressive balance between performance and efficiency. With 219 combined horsepower, they accelerate from 0-100 km/h in approximately 7.5 seconds—nearly a full second quicker than the gasoline variants. More impressive is their fuel efficiency, with most trims achieving approximately 5.7 L/100 km in city driving and 6.3 L/100 km on highways. The Woodland Edition’s off-road focus increases consumption slightly to 6.2 L/100 km city and 6.7 L/100 km highway.
The Prime plug-in hybrid stands as the performance leader with its substantial 302 horsepower output and rapid 6.0-second acceleration to 100 km/h. When operating as a hybrid after the electric range is depleted, it achieves approximately 6.0 L/100 km combined. However, drivers who regularly charge the battery and operate primarily within the electric range can realize significantly lower actual fuel consumption.
Technological Integration and Control Systems
All RAV4 drivetrain systems feature sophisticated electronic controls that optimize performance, efficiency, and traction. The conventional gasoline models use the Toyota integrated management system to coordinate engine output, transmission shifting, and torque distribution.
Hybrid and Prime models employ the more advanced Hybrid Synergy Drive control system that manages the complex interaction between the gasoline engine, electric motors, battery, and transmission. This intelligent system constantly adjusts the power split based on driving conditions, battery state, and driver inputs.
Across all drivetrain options, the RAV4 includes selectable drive modes that modify system behaviour to suit different conditions. These typically include Eco, Normal, and Sport modes, with additional options like Trail mode on appropriate trims. The Prime models add EV, Auto EV/HV, and HV modes to give drivers more control over when and how the electric power is utilized.
The multi-information display in all models provides detailed feedback about drivetrain operation, helping drivers maximize efficiency and performance. In hybrid and Prime models, this includes visualization of power flow between components and coaching to optimize driving technique for maximum efficiency.
With its diverse range of drivetrain options across multiple trim levels, the Toyota RAV4 offers something for virtually every driver. From the straightforward reliability of the conventional AWD system to the impressive efficiency of the hybrid and the remarkable performance of the Prime, the Toyota engineering prowess is evident throughout the lineup.
